New and Upgraded Products:

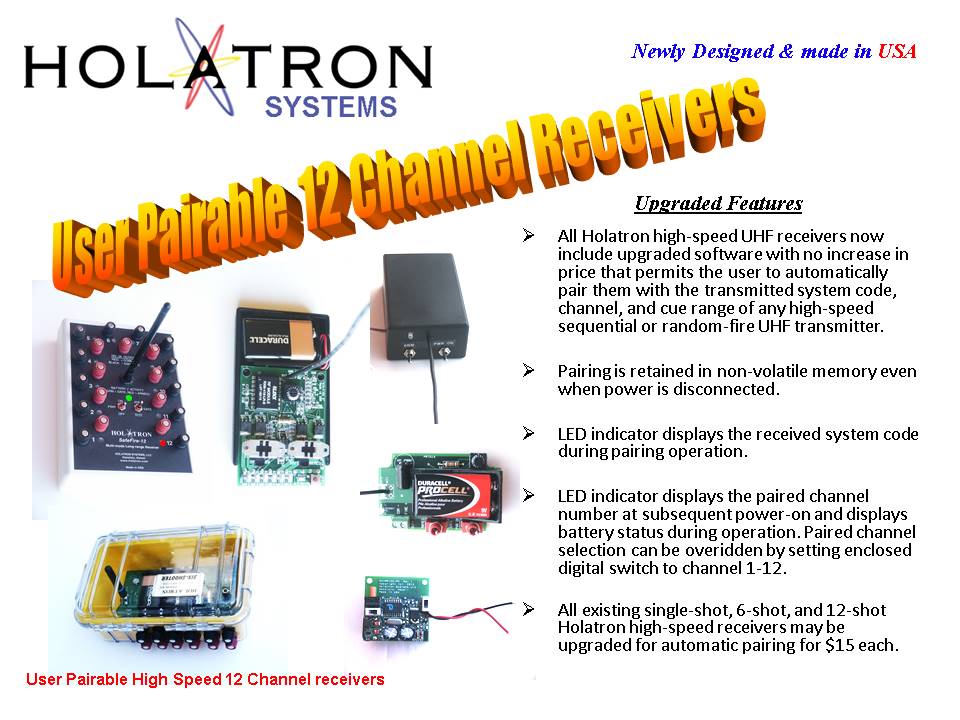

All Holatron high-speed UHF receivers have been upgraded at no increase in price to permit the user to easily pair them with the private system code, channel number, and/or cue number(s) of any Holatron transmitter, old or newly upgraded. Pairing is accomplished with a single transmission from the desired transmitter:       Upgrade Details

View upgrade descriptions and instruction manuals under:       Special Effects Systems

Our Smart Holatron Repeater retransmits properly formatted Holatron commands on 418 or 315 MHz for extended range and enhanced coverage in stadium and arena environments. It error checks the retransmitted commands for additional safety and does not introduce any perceptible delay in the retransmitted command. Click Additional Information or Download Instruction Manual.
Our Wireless Propane Blaster provides a sequenced solenoid valve and ignition coil output for repetitive explosion and/or flame effects. 418 and 315 MHz versions are available. Click Additional Information or Download Instruction Manual.
Our pin-matrix wireless interfaces provide an instant means of converting Pyro Magic, FireOne, PyroMate, and similar cable firing panels to wireless firing systems capable of directly firing Holatron 10000RS and 10000RS24 spread-spectrum receivers. Operation is simple and intuitive. Systems are currently available in sizes ranging from 32 to 128 cues. Contact Factory for additional information.
Our RFLS-MK3HS acoustic triggered UHF transmitter simplifies the task of precisely synchronizing simulated bullet hits or other effects with gunshots, explosions, crashes, etc. View a description and instruction manual for this product under Special Effects Systems.
We have developed many variations of our spread-spectrum system products, such as higher power systems with line-of-sight range up to 10 miles, multi-channel transmitters and receivers that permit up to 48 co-located transmitters to control separate groups of receivers simultaneously without interference, compact 2-shot spread-spectrum receivers, transmitters that require a 4-digit PIN code for activation, and a multiconductor cable wireless interface that plugs into the cable connectors or splitters in a Pyro Magic, FireOne, PyroMate, or similar system to convert it instantly to a wireless system capable of firing our series 10000RS spread-spectrum receivers over a range of up to 10 miles. These interfaces are available in 32 through 128 cue versions.
Contact Factory for additional information.







The model RFLS-CD2 Double Detonator is a dual output capacitor discharge hand-held firing module which can deliver CD outputs of 315 volts, 5 joules each, separately or simultaneously to 2 separate devices connected to its PyroClip output terminals. The output energy level is adjustable, and it takes only 4 seconds to reach full 5 joule energy level from a completely discharged state. Battery fuel gauge and output energy level display, and output continuity (galvanometer) check is included. The module is powered by a 9V alkaline battery with 7 days life under continuous usage.



Our InstantFire-12 high-speed 144-shot controller, FCC & IC certified on 418 and 315 MHz, has been upgraded to permit channel and cue range configurations to be preset from the keypad by the user. Configuration is retained in nonvolatile memory even when power is disconnected. Saved channel configuration is displayed at power-on. Private system codes can be created and reserved at very low cost (typically a one-time charge of $15 for code creation), These prevent the possibility of actuation from other Holatron transmitters. Upgraded unit provides wireless control of 12 separate digital channels for a total of 144 cues from a single hand-held transmitter at an unbelievably low cost per shot. It has 1/2 mile range and is fully backwards compatible with all of our 1, 2, 6, and 12 shot receivers while incorporating numerous advances in transmitter technology. Power is turned on and off from the keypad (like a cell phone). So there are no protruding switches, and the transmitter fits easily in a shirt pocket. Powered by 2 AA batteries. Price is unchanged.         Upgrade Details


Our RapidFire-12 high speed sequential controller and AcousticFire-12 acoustic triggered sequential controllers have been upgraded from 6 channels to 12 and can now be user configured to operate on any fixed channel or group of channels. Configuration is retained in nonvolatile memory even when power is disconnected. Saved channel configuration is displayed at power-on. They are available on 418 or 315 MHz and are fully backwards compatible with all of our 1, 2, 6, and 12 shot receivers while incorporating numerous advances in transmitter technology. Private system codes can be created and reserved at very low cost (typically a one-time charge of $15 for code creation), These prevent the possibility of actuation from other Holatron transmitters. They provide wireless control of 12 separate digital channels for a total of 144 cues from a single hand-held transmitter at an unbelievably low cost per shot. They have 1/2 mile range and are FCC certified. Price is unchanged.                             Upgrade Details
Our RFLS-491HSRC series single-shot mini-receiver provides a dramatic size reduction from previous Holatron receivers while maintaining their range and features. These are inexpensive enough to be suitable for disposable applications. They are available in ABS enclosures or on stand-alone circuit boards with selectable cue number or with selectable “A” or “B” transmitter command. Selectable cue versions now include the ability to easily pair with the private system code, channel number, and cue number(s) of any Holatron transmitter, old or newly upgraded. View descriptions and instruction manuals for this product under Special Effects Systems



Our high-speed MicroReceiver provides an even greater level of miniaturization than our RFLS-491HSRC mini-receivers while maintaining a radio control range of 1/4 mile line-of-sight without any external antenna for tight applications. It now includes the ability to easily pair with the private system code, channel number, and cue number(s) of any Holatron transmitter, old or newly upgraded, and it contains the same battery monitor and output continuity detection features found in all Holatron receivers. Powered by optional alkaline or silver-oxide watch batteries or lithium cell, its CD output can reliably fire 2 standard e-matches in series or parallel. Measuring just 1.75″ square, this receiver is easily concealed. See Special Effects Systems.
